Description

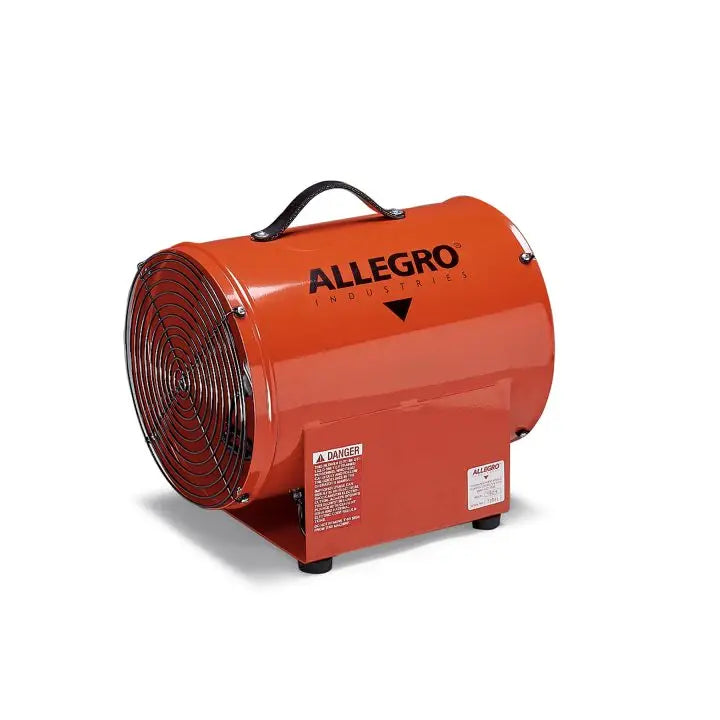

For applications requiring larger amounts of air output this Allegro 12″ High Output Blower offers portability and minimal weight. The Allegro 12″ (30.4cm) High Output Blower offers and 1/2 HP motor with an efficient six blade impeller in a rugged metal housing. Certified to SCA Standard C22.2 No 113.
CONSTRUCTION
- Complete unit epoxy power coated in “safety orange”
- Ducting may be attached at either flange for intake or exhaust ventilation
- 16 gauge cold rolled steel housing
- 14 gauge steel base
- 3 ply rubber carrying handle
- Steel black powder coated grill
- Equipped with four rubber feet
MOTOR
- HP: 1/2 HP
- Certifications: UL Recognized, CSA Approved
- Voltage/Hz: 115V AC, 60Hz, Single Phase
- RPM: 3450
- Current Draw: 6.0A
- Cord: 25′ (7.62m) 16/3 AWG SJTW 105C 300V medium duty
- Switch: Toggle On/Off
- Plug: NEMA 5-15 (grounded three prong)
