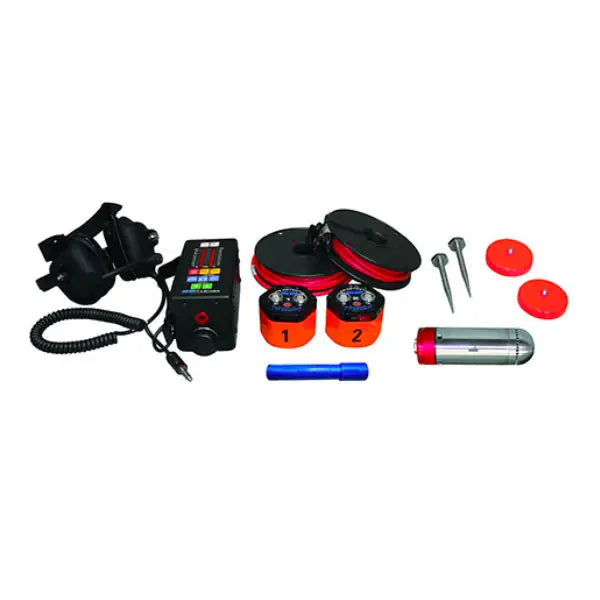

Delsar LifeDetector LD3 Mini – Compact Seismic/ Acoustic Listening Device for Hasty Search

Call for Price

Description

Used by FEMA, USAR, SUSAR and rescue teams from around the world, the Delsar Life Detector LD3 is a seismic/acoustic listening device to detect and locate live victims trapped in:

  • Collapsed structures caused by earthquakes
  • Explosions
  • Landslides
  • Mine disasters or cave-ins

The Delsar Life Detector LD3 Mini is a two-sensor seismic/acoustic listening device designed specifically for hasty searches. This compact kit can be quickly deployed on the rubble pile to convert the entire collapsed structure into a large sensitive microphone that transmits noises from entombed victims. Utilising the same features and functionality as the Delsar LifeDeterctor LD3, the Delsar Mini is equipped with two sensors, two seismic sensors and one acoustic sensor.



Key Benefits

  • Easy-to-read clear display panel
  • Equipped with up to 2 sensors
  • View simultaneously the strength from all sensors to ID the strongest signal
  • Noise reducing Filters for better audio quality
  • Lithium-ion batteries compatible with SearchCam 3000

Technical Information

Control console

  • Sensor inputs: 2 strings
  • Seismic sensor: 2
  • Acoustic sensor: 1
  • Visual display: Up to all two sensors simultaneously
  • Audio output: 1 headphone output
  • Frequency range: 1 Hz – 3000 Hz
  • Filter range, low: High pass, 100 Hz
  • Filter range, AC: Notch 50/60 Hz
  • Filter range, high: Low pass, 600 Hz
  • Battery type: Disposable Lithium cells (CR123)
  • Battery endurance: almost 10 hours depending on number of sensors
  • Battery optional kit: Rechargeable Lithium-ion tube pack, battery charger, power supply and power cord
  • Dimensions: 3 “W x 3.55″H x 6″D (152 mm x 127mm x 83 mm)
  • Weight:1 lbs (1Kg) without disposable battery tube

Seismic Sensor

  • Position sensitivity: Can be used in any position
  • Sealing: IP67 (water and dust tight)
  • Shock resistant: over 1000g
  • Freq. response: 1 Hz to 3000 Hz
  • Dimensions: 3.5″ Diameter x 2.6″ H (89 mm x 66 mm)
  • Weight: 16.5 oz (.466Kg)

Acoustic Sensor

  • Sealing: IP67 (water and dust tight), microphone must be dry for operation
  • Freq. response: 80 Hz to 4500 Hz
  • Options: Telescoping probe
  • Dimensions: 1.625″D x 6″L (41mm x 152mm)
  • Sensor cable: Length 30.2 feet (10M)

Case

  • Dimensions: 21″ L x 15″ W x 7″ D (81cm x 53cm x 31cm)
  • Weight (loaded): 25 lbs (11.3Kg)
