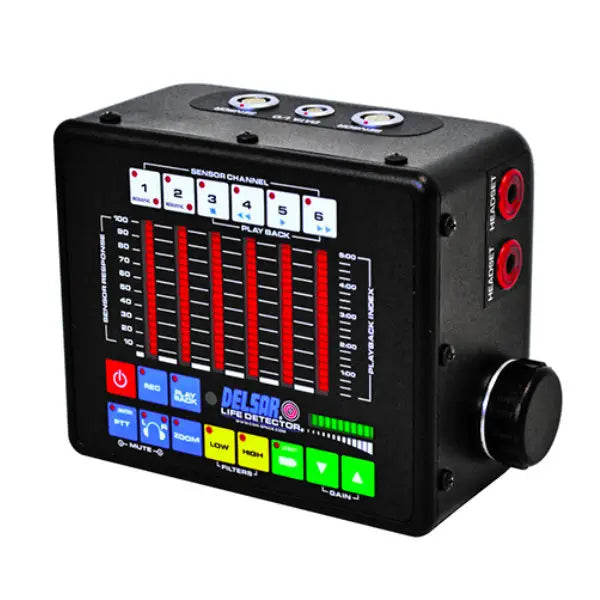

Delsar LifeDetector LD3 – Seismic and Acoustic Listening Device

Call for Price

Used by FEMA, USAR, SUSAR and rescue teams from around the world, the Delsar Life Detector LD3 is a seismic/acoustic listening device to detect and locate live victims trapped in:

  • Collapsed structures caused by earthquakes
  • Explosions
  • Landslides
  • Mine disasters or cave-ins

Description

Used by FEMA, USAR, SUSAR and rescue teams from around the world, the Delsar Life Detector LD3 is a seismic/acoustic listening device to detect and locate live victims trapped in:

  • Collapsed structures caused by earthquakes
  • Explosions
  • Landslides
  • Mine disasters or cave-ins

The Delsar Life Detector LD3 converts the entire collapsed structure into a large sensitive microphone that transmits noises from entombed victims. The seismic and acoustic sensors convert vibrations created by the live victim into audible and visual signals. The Delsar is rugged, reliable and able to withstand days of continuous use at the disaster site.



Key Benefits

  • Easy-to-read clear display panel
  • Equipped with up to 6 sensors
  • View simultaneously the strength from all sensors to ID the strongest signal
  • Noise reducing Filters for better audio quality
  • Record last five minutes of audio
  • Twin headphone jacks Lithium-ion batteries compatible with SearchCam 3000

Technical Information

Control console

  • Sensor inputs: 2 strings
  • Seismic sensor: 6
  • Acoustic sensor: 2
  • Visual display: Up to all six sensors simultaneously
  • Audio output: 2 headphone outputs
  • Audio selection: 0-6 sensors, audio response is summed, stereo output can be selected with any 2 sensors
  • Frequency range: 1 Hz – 3000 Hz
  • Filter range, low: High pass, 100 Hz
  • Filter range, AC: Notch 50/60 Hz
  • Filter range, high: Low pass, 600 Hz
  • Record capacity: 300 second loop, indexed to 15 second blocks
  • Auxiliary output: Provides audio, chart recorder and remote control function capability
  • Battery type: Rechargeable Lithium-ion tube pack
  • Battery endurance: 2 – 6 hours depending on number of sensors
  • Battery recharge time: 3 hours
  • Charger pwr: 12 VDC (vehicle charging) 110-220 VAC
  • Batt. options: Disposable Lithium cells (CR123) with adapter Searchcam 2.5 Ahr/5 Ahr SLA belt pack with adapter cable
  • Dimensions: 6″W x 5″H x 3.25″D (152 mm x 127mm x 83 mm)
  • Weight: 2.2 lbs (1Kg) with rechargeable battery

Seismic Sensor

  • Position sensitivity: Can be used in any position
  • Sealing: IP67 (water and dust tight)
  • Shock resistant: over 1000g
  • Freq. response: 1 Hz to 3000 Hz
  • Dimensions: 3.5″ Diameter x 2.6″ H (89 mm x 66 mm)
  • Weight: 16.5 oz (.466Kg)

Acoustic Sensor

  • Sealing: IP67 (water and dust tight), microphone must be dry for operation
  • Freq. response: 80 Hz to 4500 Hz
  • Options: Telescoping probe
  • Dimensions: 1.625″D x 6″L (41mm x 152mm)
  • Sensor cable: Length 30.2 feet (10M)

Case

  • Dimensions: 32″ L x 21″ W x 12″ D (81cm x 53cm x 31cm)
  • Weight (loaded): 45 lbs (20.4Kg)
